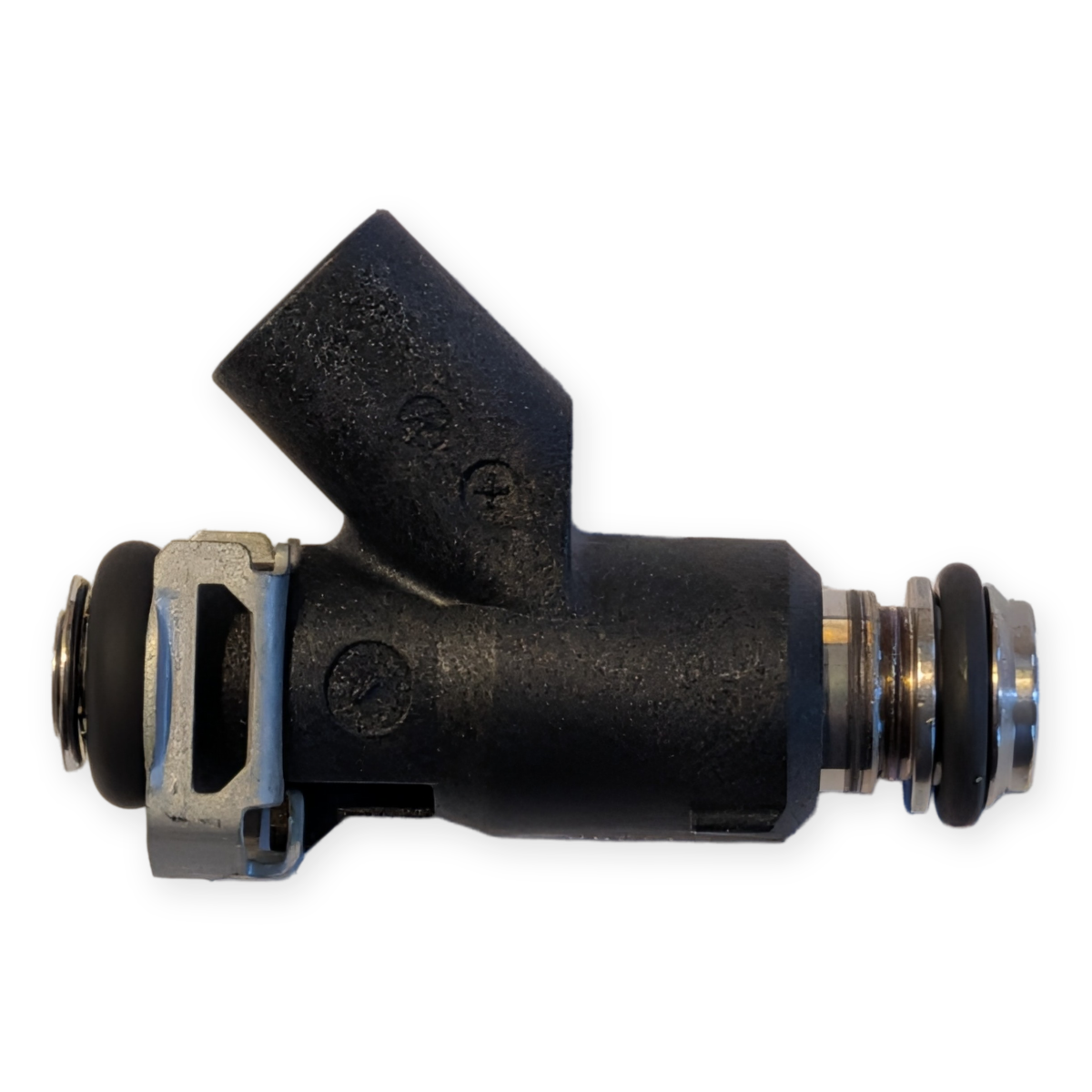

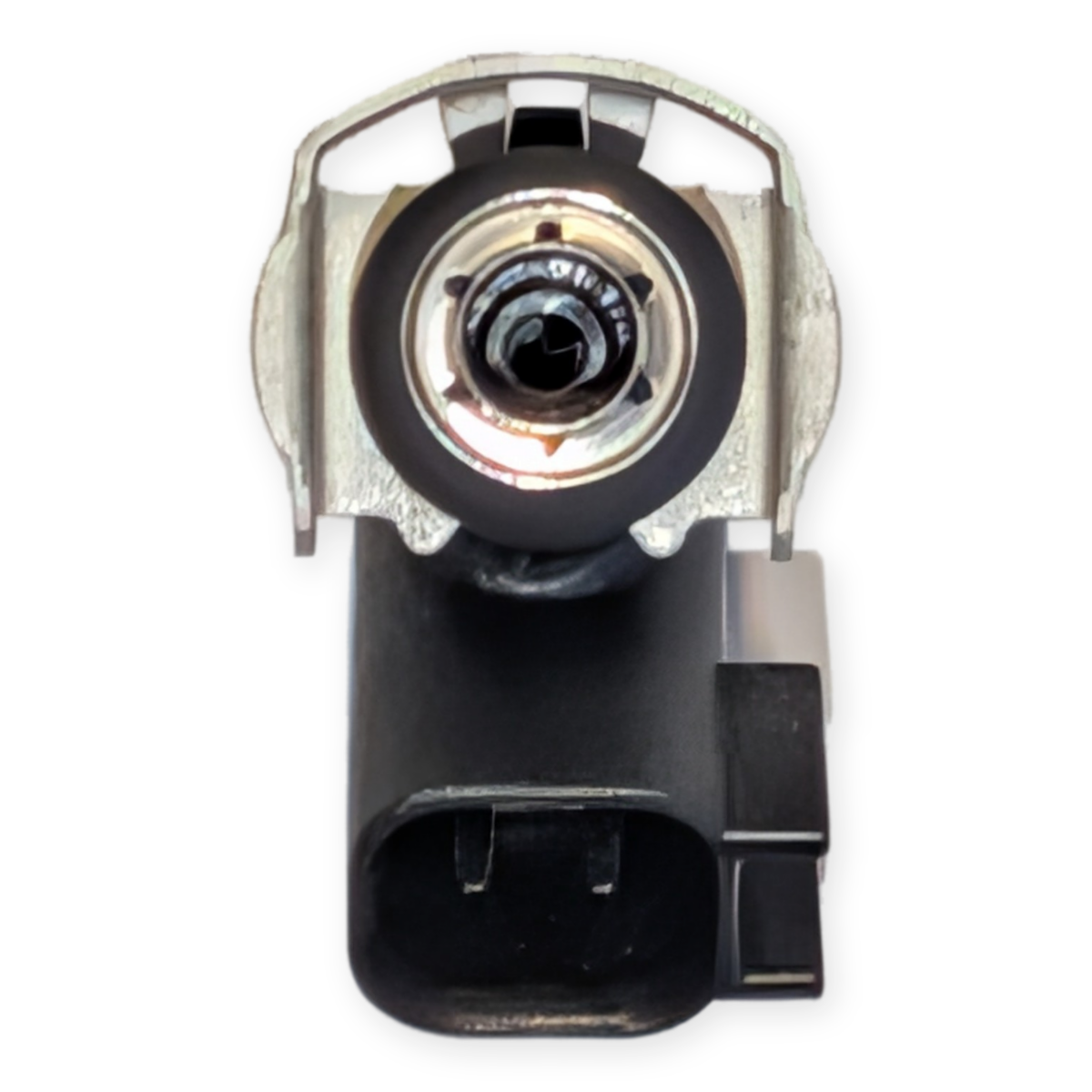

CSC RX3 Delphi Fuel Injector 25359853 - Z35-114
Keep your RX3's EFI system matched with the correct Delphi fuel injector. This 25359853 injector is used on the CSC RX3 / Zongshen NC250 platform and cross-references to Zongshen NC250D-1200200.
Designed as a direct replacement for the original injector, it features a 12V two-pin connection, four-hole injector tip and installed Viton seals. The multiple part-number cross-references make it easy to verify the correct component before ordering.
Product Details
- CSC SKU: Z35-114
- CSC cross-reference: Z10-125
- Delphi part number: 25359853
- Zongshen reference: NC250D-1200200
- Fits CSC RX3 / Zongshen NC250 EFI applications
- 12V DC, 2-pin electrical connector
- 4-hole injector tip
- 13-14 ohm coil resistance
- 7 x 4 mm Viton inlet O-ring installed
- 9 x 2.5 mm Viton manifold O-ring installed
Additional Cross-Reference
AJP PR5 250 LC service information also identifies Delphi 25359853, with AJP injector reference 00MTC01A0058.
Fitment note: Confirmed for the CSC RX3. For non-CSC applications, verify the Delphi number, connector and original injector before ordering.
Other Details
NoneProduct Videos
Custom Field
Interchange Part # Z10-125
Warranty None
