Product Description

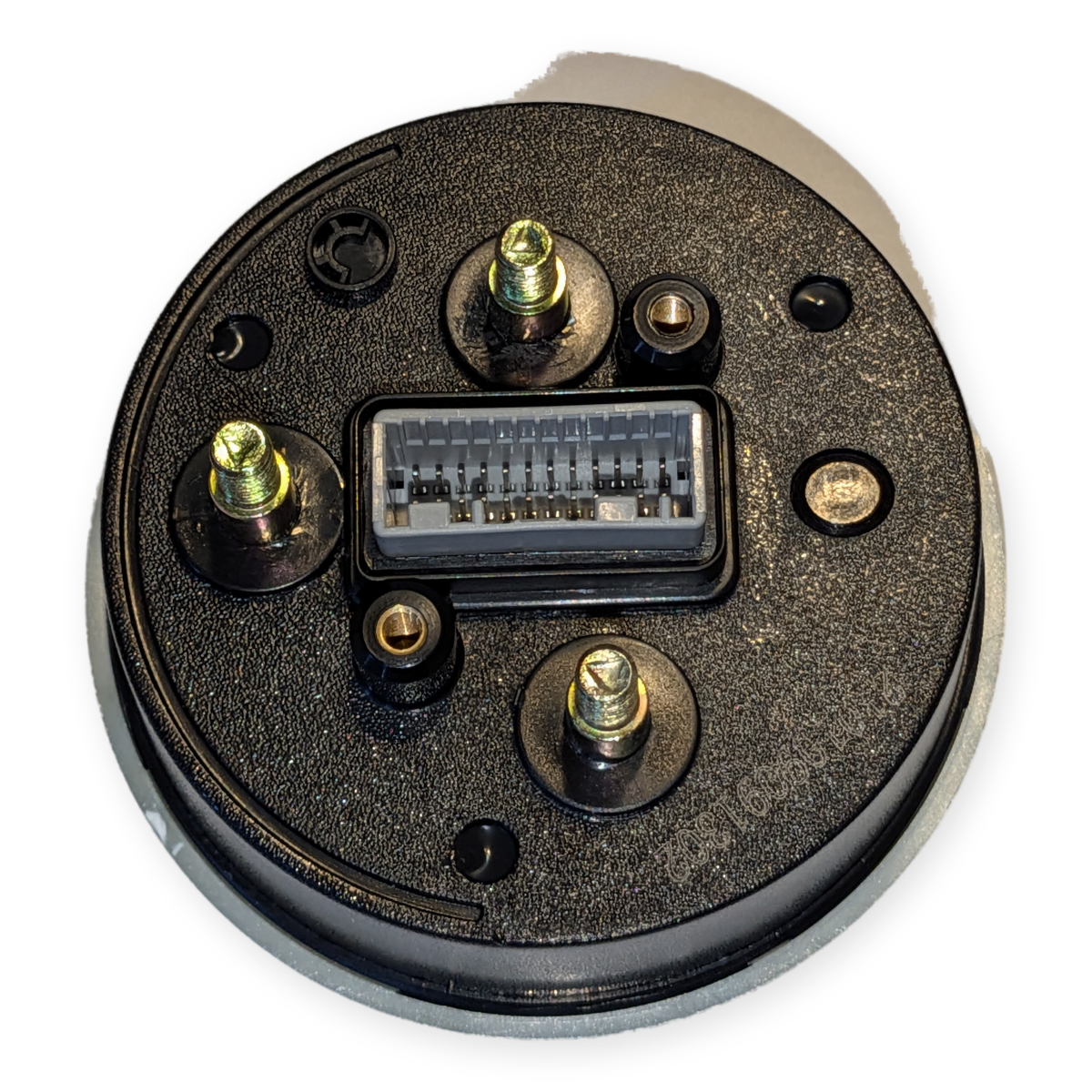

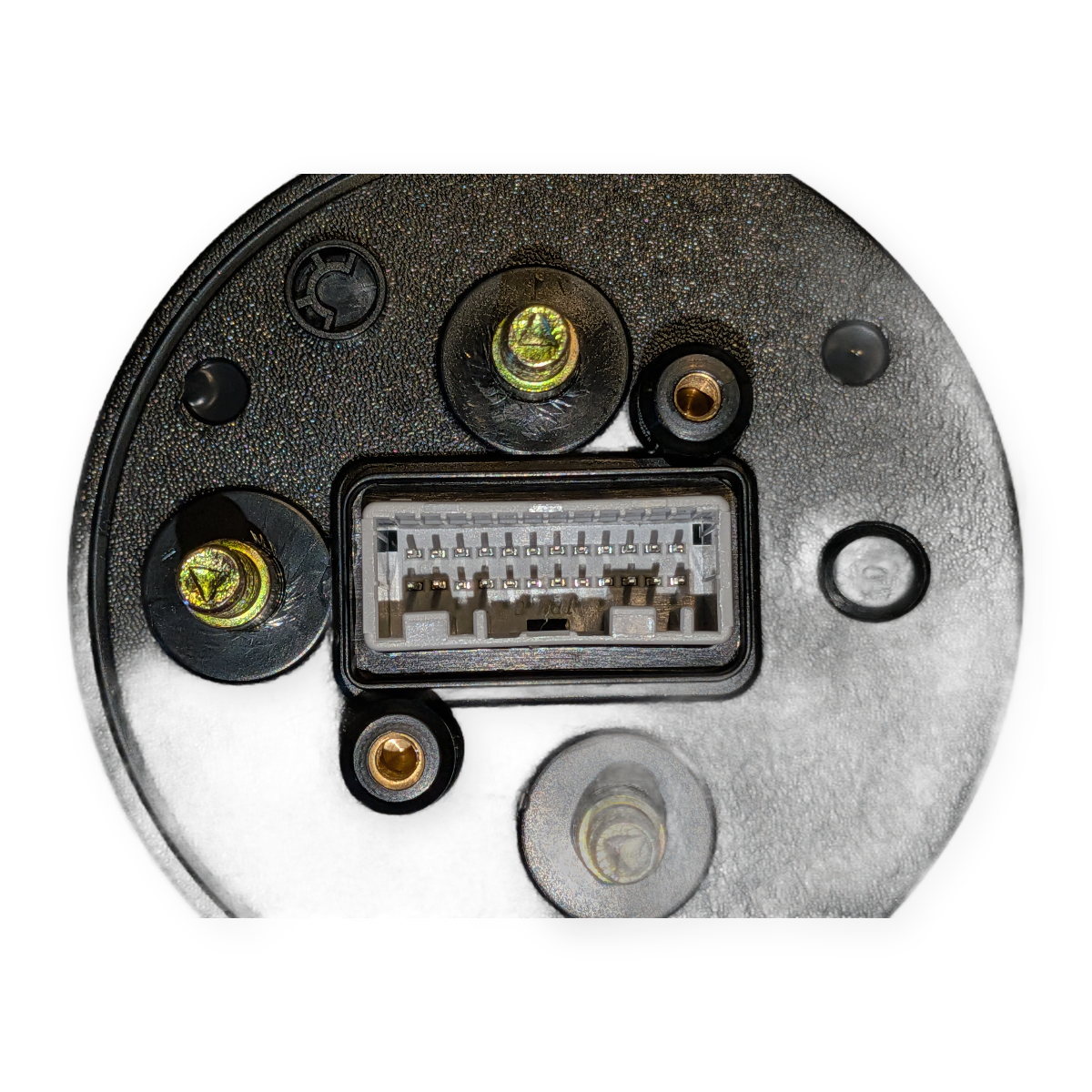

CSC SG250 Digital Instrument Cluster - SG3-114 / Sansan SS530 530A
Replacement multifunction LCD gauge for 2019-up CSC SG250 motorcycles. CSC identifies this part as SG3-114 and the Zongshen OEM number as 87100-J1K8-0200. The original unit is marked SAN SAN 530A. Manufacturer research, catalog comparison and physical dimensions identify it as a Zongshen-specific version of the Sansan SS530-series motorcycle instrument.
Display Functions
- Digital speedometer with MPH / km/h switching
- Tachometer / engine RPM display
- Odometer and trip display
- Fuel-level display
- Gear-position display
- Clock
- Turn-signal, high-beam and neutral indicators
- Selectable-color LCD backlight
Part Identification
- CSC Part Number: SG3-114
- Zongshen OEM Number: 87100-J1K8-0200
- Manufacturer: Chongqing Sansan Electric Appliance Co., Ltd.
- Gauge Marking: SAN SAN 530A
- Instrument Family: Sansan SS530-series
Measured Dimensions
- Outside Diameter: Approx. 97-98 mm
- Inside Bezel Opening: Approx. 81-82 mm
- Housing Depth: Approx. 43 mm
- Rear Plate Height: Approx. 34 mm
Confirmed Fitment
CSC SG250: 2019-up. This later SG250 uses the digital electronic-speed-sensing instrument system. Do not assume fitment to earlier SG250 models that use the previous instrument and wiring configuration.
SS530 Fitment Note
Sansan produced SS530-family instruments in OEM-specific configurations. The SS530 / 530A identification is useful for identifying this gauge, but a generic SS530 should not be assumed to have the same connector pinout, calibration or plug-and-play compatibility. For a direct SG250 replacement, match SG3-114, 87100-J1K8-0200 and SAN SAN 530A.
