Product Description
CSC SG250 Carburetor Intake Manifold - SG14-109
Repair an intake leak or replace a worn carburetor mounting manifold on your 2018-up CSC SG250 San Gabriel. This Zongshen factory-style intake manifold connects the carburetor to the cylinder head, with the mounting interfaces and hose fitting shown in the product photos.
Confirmed Motorcycle Fitment
- CSC SG250 San Gabriel: 2018 and later, original carbureted intake system
Product Details
- CSC reference: SG14-109
- Type: Carburetor-to-cylinder-head intake manifold / intake pipe

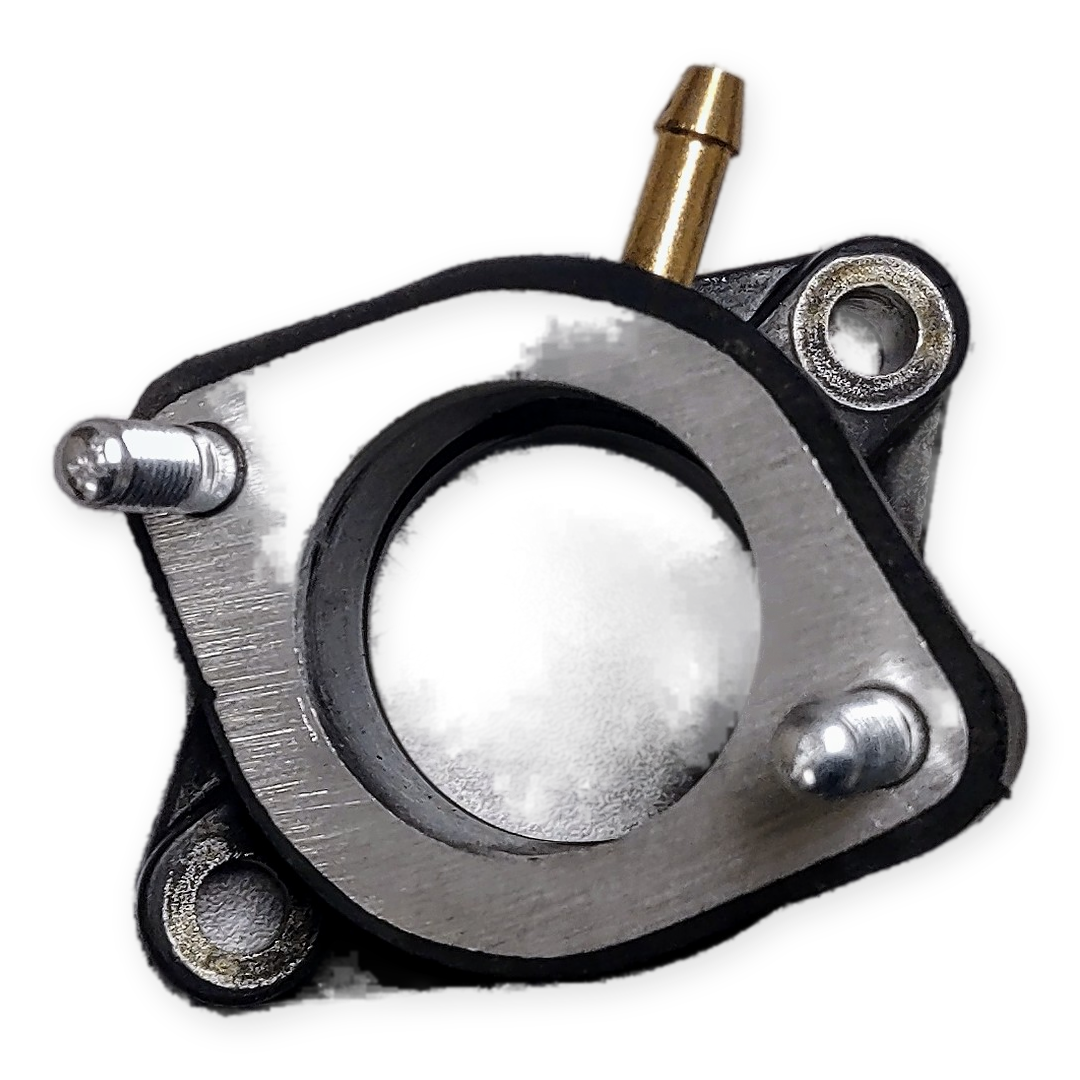

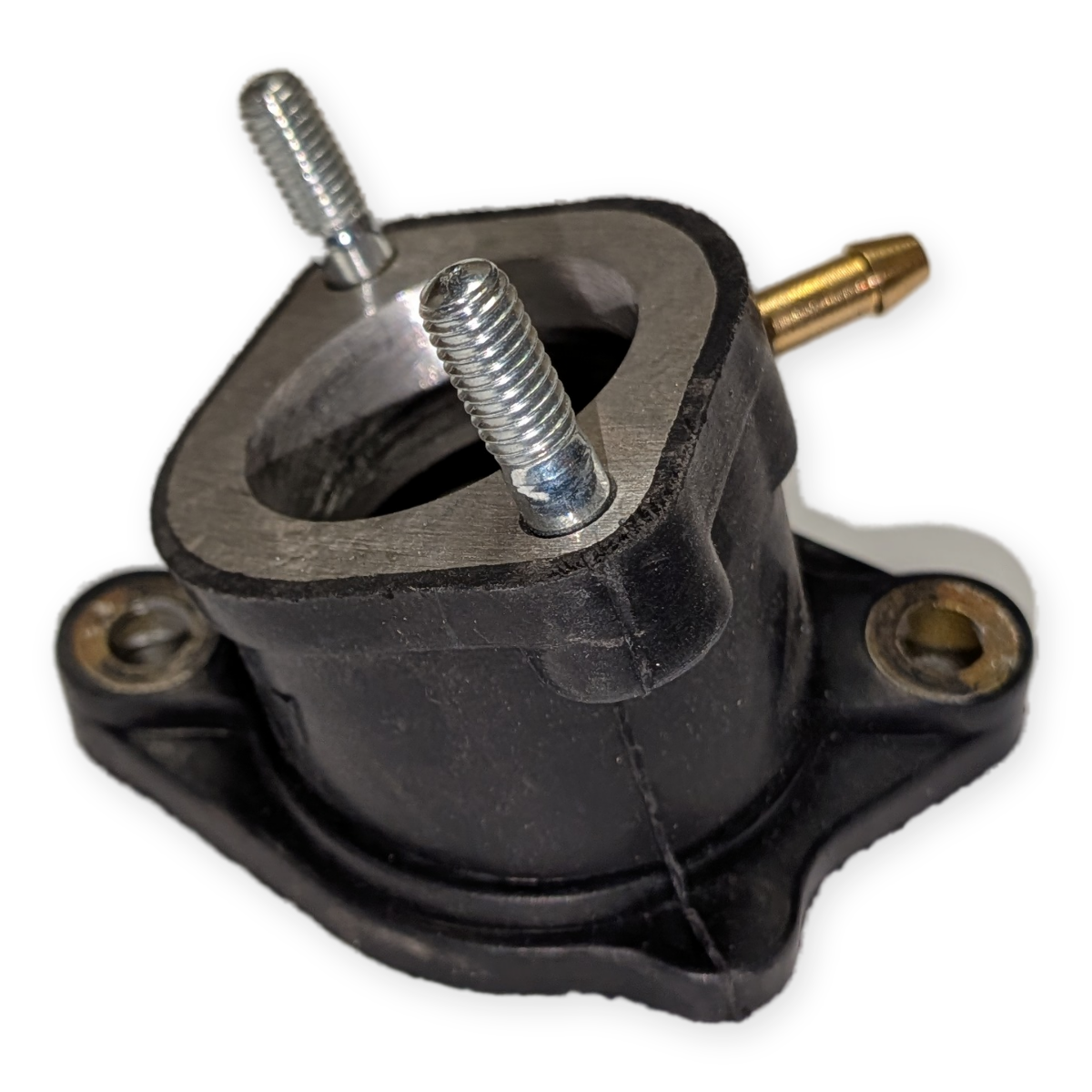

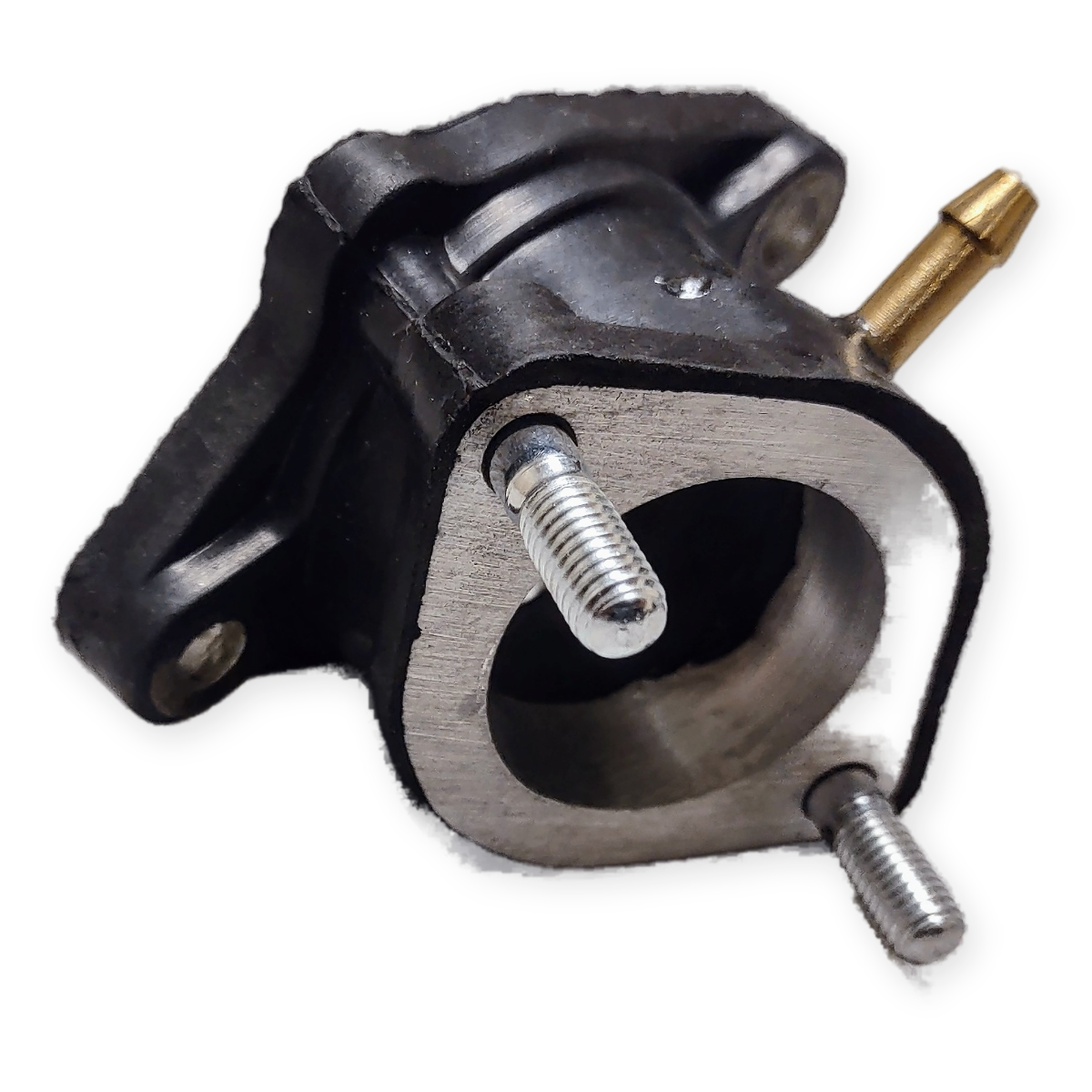

- Carburetor side: Two threaded studs and metal-faced flange
- Engine side: Two metal-reinforced mounting holes and recessed O-ring as pictured
- Additional connection: Angled brass hose nipple
- Finish: Black molded body with metal mounting surfaces
- Quantity: One manifold assembly
When to Inspect the Intake Manifold
Cracks, deterioration or a poor seal at the manifold can admit unmetered air, contributing to erratic idle, hesitation, difficult starting or a lean running condition. Confirm the cause of the problem before replacing parts.
Fitment Notes
Compare your original intake manifold's flange shape, stud spacing, engine-side bolt spacing, intake opening and hose connection. We have not verified interchange with CSC TT250 or manifolds identified by Zongshen part numbers 15800-I853-C700, 15800-I853-C400 or 15800-I853-0100Q. Do not order for another motorcycle based on a similar appearance alone.
Included: one intake manifold with the installed studs and O-ring visible in the photos. Carburetor, hoses, loose nuts and engine mounting bolts are not included.
