Universal Wiper Motor 3 Position Switch w/ Knob

Product Description

Universal Windshield 3 Position Wiper Switch - Single Motor
This switch features a low speed, high speed, and an auto park/off position.
This top quality switch is perfect for any street rod, hot rod, custom car or truck, or boat application.


Features:
Universal Application
Single Motor Only
3 Position 'Off/Park' /low /high
Requires a 7/16" mounting hole
4 Blade Style Terminals

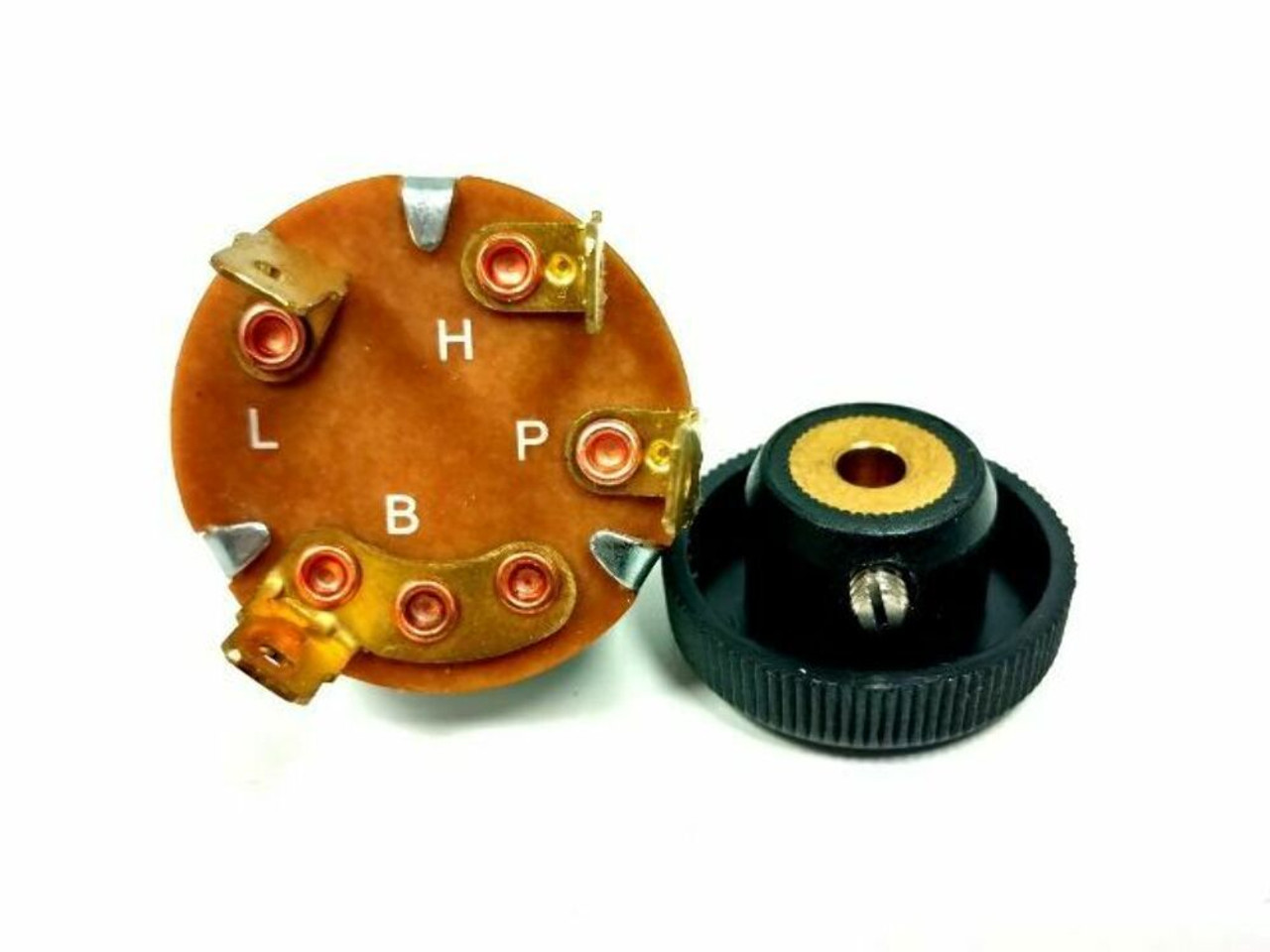

Terminals:
L = Low Speed
H = High Speed
P = Park/Off
B = Battery/Power
Notes:When using this switch with our universal stainless wiper motor, the switch will be wired from the 'S' terminal on the motor to the 'L' terminal on the switch. A ground wire will then be wired from the 'B' terminal on the switch to a grounded location. The 'H' and 'P' terminals will remain unused for this application. Our Universal wiper motor will only operate at one constant speed. If used with any other wiper motors then terminals 'H' & 'P' will operate at different speeds.
